Product Overview

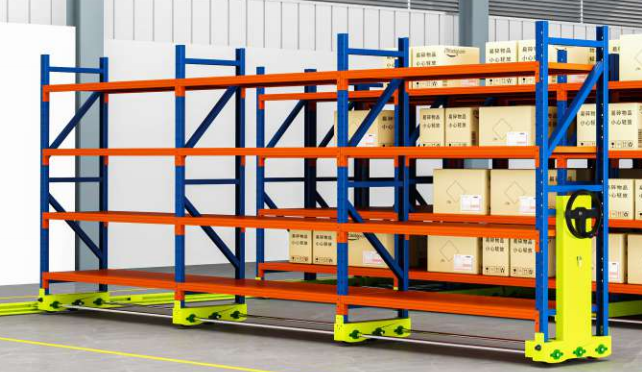

The ZY-B-01 Trackless Single-Row Manual Mobile Shelving System is engineered for high-density document and archive storage in offices, government agencies, libraries, hospitals, and logistics warehouses. Unlike conventional fixed shelving, this compact mobile system eliminates fixed aisles and runs on a floor-embedded rail base, maximising floor-space utilisation by up to 83 % compared with traditional static shelves. Constructed from premium SPCC galvanised cold-rolled steel throughout, every component is precision-formed and finished with electrostatic powder coating for lasting corrosion resistance. The system ships flat-packed for easy global export and can be installed without specialist tools, making it the preferred choice for B2B purchasers seeking a reliable, cost-effective high-density storage solution.
Key Features & Structure
Product Parameters
| Model | ZY-B-01 |
| Configuration | Trackless Single-Row (Single-Sided) |
| Outer Dimensions (W × D × H) | 2000 mm × 610 mm × 2145 mm |
| Number of Shelf Levels | 4 Levels (adjustable pitch) |
| Load Capacity per Shelf | 200 kg |
| Upright Column | 2.5 mm galvanised SPCC cold-rolled steel; adjustable height 120 mm increment |
| Shelf Panel | 0.8 mm galvanised SPCC steel; with anti-tip wire guard and M6 bolt fixing |
| Beam (Horizontal) | 70 mm × 35 mm × 0.8 mm SPCC steel |
| Cross Brace (Diagonal) | 60 mm × 40 mm × 0.8 mm SPCC steel |
| Shelf Deck Thickness | 0.4 mm |
| Drive System | Chain-drive rotation handwheel; operates under full-load conditions |
| Push Tube | φ20 mm × 0.5 mm solid circular steel; M6 bolt-press fixed |
| Anti-Collision Guard | Rubber semi-circular bumper strips; screw-fixed between units |
| Structure Type | All-welded; knock-down flat-pack for export |
| Surface Treatment | Electrostatic powder coating |
| Colour Options | Light Grey, Blue, Green, Beige (custom RAL available) |
| Net Weight / Gross Weight | 83 kg / 49 kg per unit |
| Volume (Packed / Unpacked) | 0.46 CBM (packed) / 0.32 CBM (unpacked) |
| Space-Saving Benefit | 1.83× usable capacity vs. fixed shelving in the same footprint; 100 m² floor area yields 183 m² of effective storage |
| Packing | 4 units per 20′ container (standard); custom grouping available |
| Suitable Environments | Government archives, corporate file rooms, libraries, hospitals, financial institutions, logistics warehouses |
