Product Overview

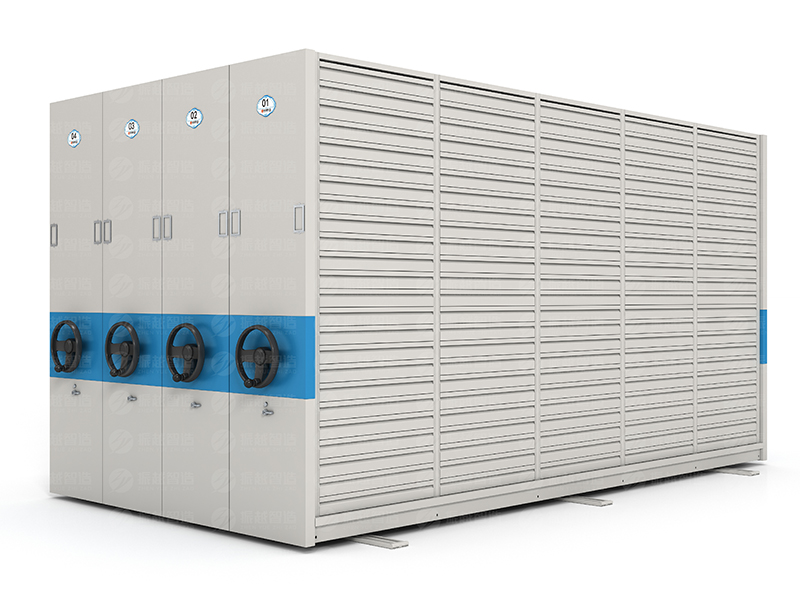

Designed specifically for engineering firms, architectural offices, cartographic departments, and facilities requiring specialized storage for large-format drawings, blueprints, maps, and technical documents, the ZY-A-09 Manual Compact Flat File Cabinet System provides professional-grade storage solutions for flat file management. Engineered with premium SPCC steel construction and built to international export standards, this manual mobile shelving solution features louvered side panel design for enhanced ventilation and rectangular door panels with pull handles for organized access. The system offers flexible configuration options with single unit type or compact shelving integration, delivering efficient space utilization while ensuring proper preservation and easy retrieval of large-format documents.
Key Features & Structure
Product Parameters
| Configuration / Model | Outer Dimensions (H × W × D) | Inner Drawer Dimensions (W × D × H) | Frame Specifications |
|---|---|---|---|
| Single Unit – Drawing No. 0 | 1200mm × 1300mm × 940mm | 1189mm × 841mm × 100mm | N/A (Standalone) |
| Single Unit – Drawing No. 1 | 1200mm × 960mm × 740mm | 860mm × 640mm × 100mm | N/A (Standalone) |
| Compact Shelving – Drawing No. 0 | 2000mm/2300mm × 940mm × Variable Length | 1189mm × 841mm × 100mm | Length: 1300mm × (sections) + 135mm |
| Compact Shelving – Drawing No. 1 | 2400mm × 740mm × Variable Length | 860mm × 640mm × 100mm | Length: 1000mm × (sections) + 135mm |
